Description

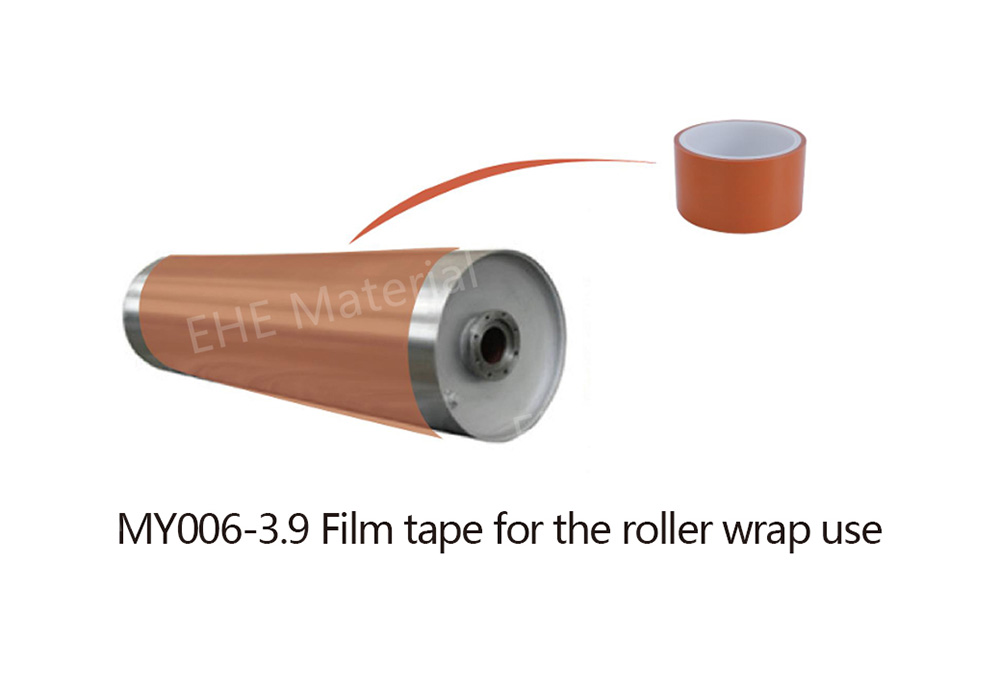

Extruded oriented high modulus PTFE tape – Known as “the orange tape”, MY006-3.9 is the ideal tape for protecting extrusion and laminating equipment during the plastic extrusion coating process which combines plastic films with various substrates. During this process, plastics are extruded onto the substrate as it passes between a neoprene roller and a cooling roller. MY006-3.9 is used as a roller wrapping tape to protect the exposed ends of the neoprene roller from the molten plastic, which is overcoated wider than the substrate.This tape can perfectly replace NITTO923 tape.
Technical Parameter
| Grade | Code |
Backing Thickness
（ins/mm） |
Total Thickness with adhesive
（ins/mm） |
Standard Width
（mm） |
Weight
(g/㎡) |
Tensile Strength
（N/cm） |
Breakdown Voltage
(Kv) |
Adhesion
（N/cm/oz./in） |
|
Silicone/
Premium |
MY006-3.9 | 0.0025/0.065 | 0.0039/0.1 | 600 | 220 | 95 | 9 | 3/27.3 |
